Inert Gas

Inert Gas

Inert gas fire suppression Systems utilize natural inert gases like Nitrogen, Argon, and/or mixture of the inert gases. Inert gas systems will extinguish fire by reducing the oxygen concentrations in the enclosure, and are suitable to be used for Class A, B and C Fire Hazards.

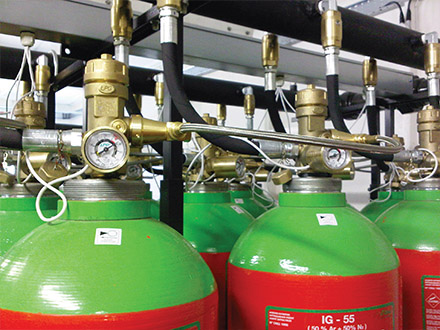

The Extinguishing Agents are stored in high pressure cylinders at 150 bar (2175Psi) 200 bar (2900 Psi) and 300 bar (4350 Psi) in sizes of 80 Lit and 140 Litters. The Discharge Pressure will be regulated by pressure reducer to a maximum outlet pressure of 60 bars (870 Psi).

Inert gas agent's compositions are as follows:

  • IG-01 - 99.9% Argon
  • IG-100 - 99.9% Nitrogen
  • IG-55 - 50% Argon and 50% Nitrogen
  • IG-541 - 52% Nitrogen, 40% Argon and 8% Co2

Inert gases have no residue and by products when exposed to fire. Inert Gasses have 0 GWP (Global Warming Potential), 0 ODP (Ozone Depletion Potential) and are safe to be used in occupied areas as per NFPA 2001 Guide lines.

IFLOW – 300 BAR – UL LISTED

INERGEN 150/200 BAR – UL LISTED

SINORIX CDT SYSTEM 200/300 BAR– VDS APPROVED

INEREX – 200/300 BAR -UL/VDS APPROVED
